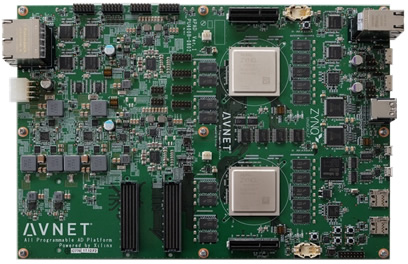

FPGA | XCZU11EG-2FFVF1517E x2 or XCZU7EV-2FFVF1517 x2 |
|
Memory | DDR4 SDRAM | MT40A512M16JY-083E x18 PS side : 72bit 2,400Mbps PL side : 32bit 2,400Mbps x2ch |
QSPI Flash | MT25QU512ABB8ESF x4 | |
μSD Card | PS side : SD3.0 Slot x2 | |
Peripheral | PCIe | PL side : PCIe Gen3.0x4Lane x2 |
USB3.0 | PS side : USB3.0 Host/Device x2 | |
USB2.0 PHY | USB3320C-EZK | |
Ethernet | PS side : 10/100/1000Mbps x2 PL side : 10/100/1000Mbps x4 DP83867IRPAP x6 |
|
CAN2.0B | PS side : TJA1040T/CM、118 x2 | |
HDMI | PL side : ADV7511KSTZ-P x2 | |
USB UART | PS side : CP2104-F03-GM x2 | |
Expand Connector | FMC | HPC(116 User IO) x2 |
Pmod (2x6) | PL side : User IO x3 | |
ARM | CorSight 10pin x2 | |
MPSoC to MPSoC Interface | GTH | Rx : 4Lane x3ch,Tx :4Lane x3ch |
LVDS | Tx/Rx Data、CS,CLK : 6pair x1 |

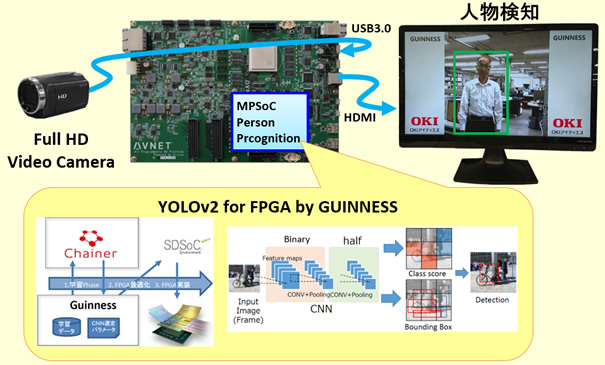

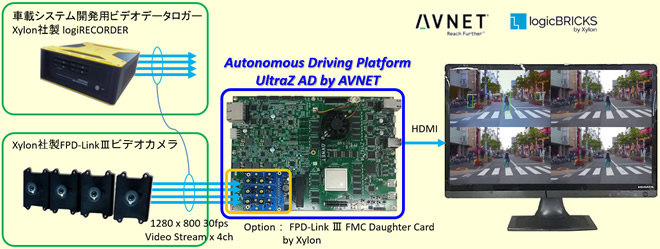

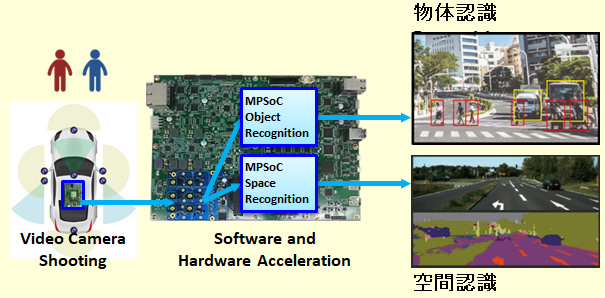

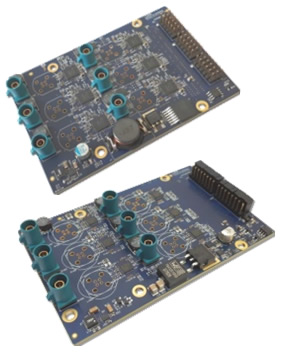

logiFMC-FPD3-934 | FPD-Link III x 6ch (TI's DS90UB934) |
logiFMC-GMSL-96706 | GMSL x 6ch (Maxim's MAX96706) |
logiFMC-GMSL2 | Next Generation GMSL x6ch |
