GigE Vision SDSOC Platform for AMD SVDK Kit Evaluation Demo Platform Free Download!

demo

About Demo

This demo detects feature points (Edge/Corner) in every frame of input video by Harris Conner algorism. The video will be then added with graphic overlay marking detected point with dots, and be transferred in GigE-Vision Protocol Packet.

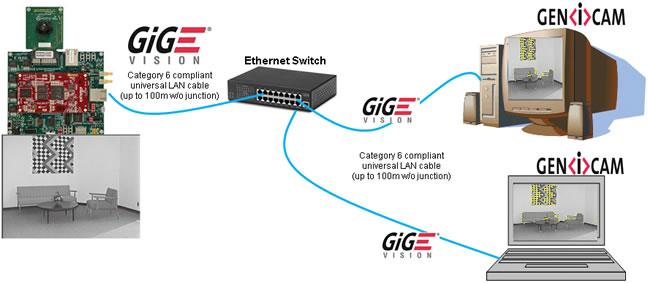

The PC(s) behaving as receiver end implements some software libraries (including GENiCam) for capturing the feature detected video.
Download free evaluation demo and test running our GigE Vision SDSoC Platform!

Overview of GigE Vision SDSoC Platform for AMD SVDK Kit

Major Features

Monochrome video input 1280x720(720P)
Edge detection(Harris Conrer Detect)
Graphic of Detected feature point (Graphic Overlay)
GigE-Vision v1.2 protocol video packet（720PRaw Data） transmission

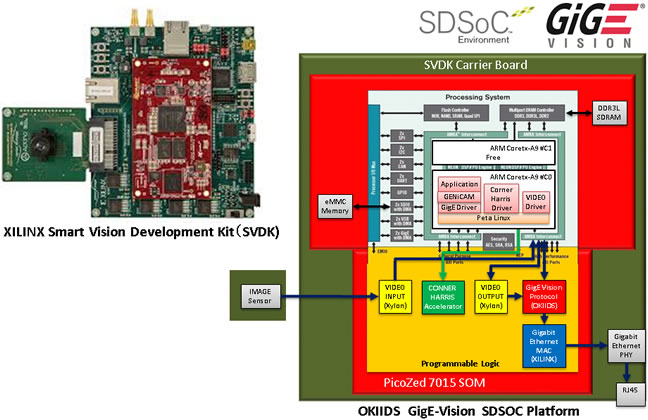

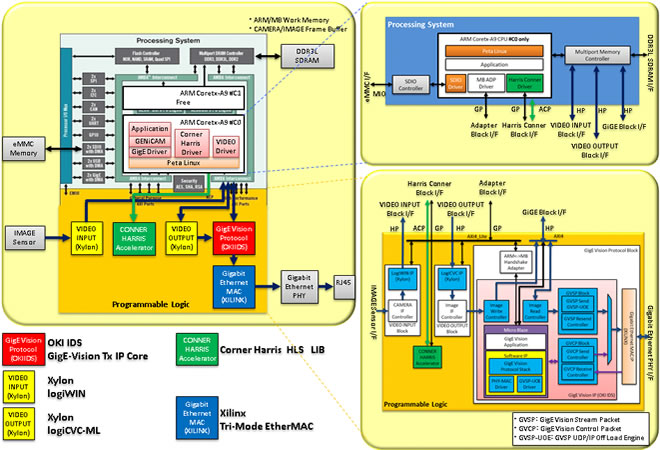

Zynq Block Diagram

Evaluation Demo Platform

Hardware Platform

This demo uses AMD SVDK (Smart Vision Development kit) as hardware platform.

http://www.xilinx.com/products/boards-and-kits/1-5ey5xx.html

Evaluation Demo Platform Free Download

SDSoC Corner Detect GigE-Vision Tx DEMO data is available for free.
Download evaluation demo platform and test running it!

Download Data includes

Demo data
Corner Detect HW/SW Evaluation Bit stream for SVDK_PicoZed 7015 SOM:.bin
GigE-Vison Evaluation Driver, Demo Application for PC:. bin, .exe
(PC driver and application support Windows 7 or 8)
Installation manual and user’s manual
